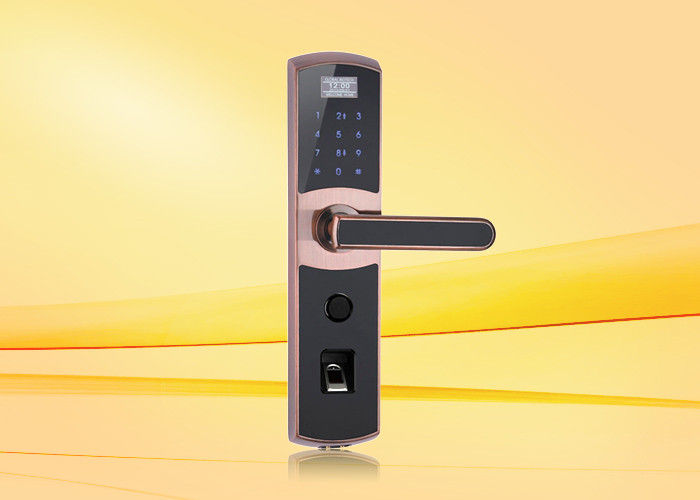

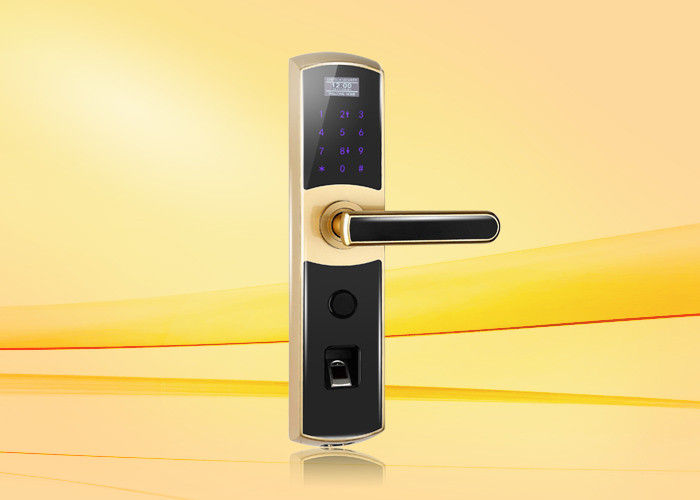

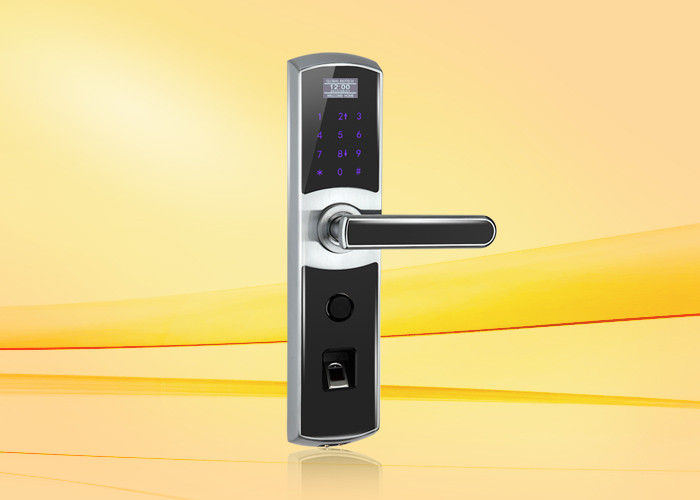

Touch Screen Biometric Fingerprint Waterproof Keypad Biometric Door Lock

Basic Information
Place of Origin: China
Brand Name: Granding
Certification: CE/FCC
Model Number: UL-780
Minimum Order Quantity: 5pcs
Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time: 2 working days after received your payment
Payment Terms: T/T in advance
Supply Ability: 5,000pcs per week
Product Name: Fingerprint Password Lock Fingerprint Capacity: 200
Password Capacity: 10 Groups Transaction Log Capacity: 100events
Speaker &Display: LCD With Voice Prompt Handle Direction: Reversible Handle Right, Left Handle
Unlock Mode: Fingerprint, Password, Password+Fingerprint, Mechanical Key Power Supply: 4PCS 1.5V AA Alkaline Batteries
High Light:

finger scanner door lock


thumbprint scanner door lock


Low Voltage Alarm Safe Fingerprint Scanner Door Lock With Touch Keypad




1. Zinc Alloy material;

2. Match Way: 1:N; 1:1; password lenth: 4-12 digit;

3. OLED display, with 360DPI resolution;

4. Support offline view of locking records

5. Unlock mode: fingerprint, password, Mechanical key, M1

card (optional)

6. Finger-touch key buttons with power saving function

7. Can display the battery charge lever, low battery voltage


8. Power Supply:4AA alkaline batteries

9. Lock color selectable: Silver, Golden, Bronze

10. Handle direction selectable: RIGHT, LEFT






Speaker &Display

Zinc Alloy

LCD with voice prompt

Unlock Mpde


Fingerprint, Password, Password+Fingerprint, mechanical Key,(optional remote unlocking, RFIC card unlocking)

Fingerprint Sensor


Capacitive Sensor

Finger Touch

Fingerprint Pixel



FAR<0.0001%  FRR<0.1%

Technical Specifications Capacity


Fingerprint capacity: 200 Templates

Operation Humidity: 20%-80%

Password capacity: 10 groups Transaction capacity:100events

Working Temperature: -10℃-50℃


Verification mode

Enrolling<0.5S Verification<0.8S


Power Supply Voltage

Power Alarming



Power Supply

Applicable Door Size

4PCS 1.5V AA Alkaline Batteries

40-150mm (Tickness)

Power Lifetime

Lock size

6-12 Months

340*75*29mm (L*W*T)

Current Consumption


Peak current<200mA     Quiescent Current<40mA





UL-780 With elegant design, high-quality material and better performance, it make 3-in-one, it brings us a new safe lock. We use live capacitive fingerprint sensor with anti-static current and accurate identification, which is more durable and stable than optics sensor. Hidden finger-touch keypad is waterproof, when operation is finished, lock will turn off the light automatically, it helps us to save power at the most. All entries' events also can be queried on time
