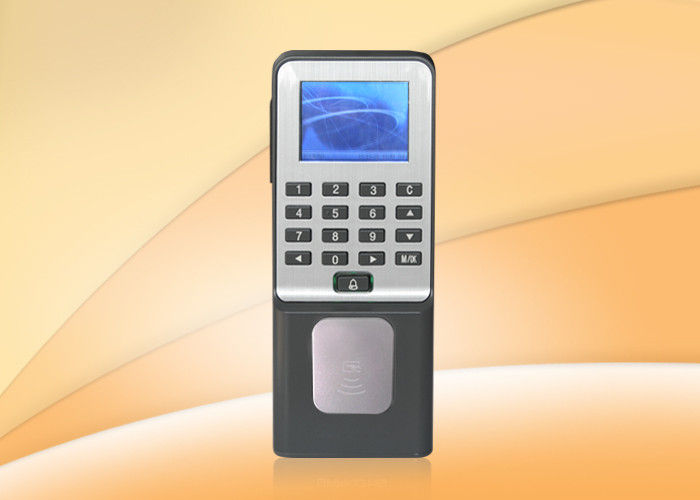

Biometric access control Rfid Time Attendance System with wired door bell

Basic Information
Place of Origin: China
Brand Name: Granding
Certification: CE/FCC
Model Number: S600
Minimum Order Quantity: 5pcs
Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time: 2 working days after received your payment
Payment Terms: T/T in advance
Supply Ability: 5,000pcs per week
Product Name: RFID Card Time Attendance Communication: TCP/IP, RS232/485, USB Host, Wiegand In/out
Log Capacity: 100,000 Card Capacity: 50,000
Attendance Status: Check In, Check Out Power Supply: 110/220VAC~12VDC (3A Is Optional)
Language: English, French, Spanish, Arabic And More Than 40 Languages Can Be Selected.
High Light:

biometric access control

,

proximity card access control system

2.4 Inch TFT Color LCD Screen RFID Time Attendance System With Webserver , Wired Door Bell Connection



Features:



          1. This S600 color screen RFID card access control system is configured with the comprehensive algorithm system that works at high matching speed.

          2. It recognizes users within a second after one touch verification.

          3. Our product supports standalone operation and connection to the network.

          4. The specialized color screen RFID card access control system allows the real-time records of entry to be transferred easily.

          5. It has the capability of running for 24 hours continuously.

          6. Our product is available in the recognition of 125kHz ID card and the connection to the wired door bell.

          7. The integrated MIFARE card reader can be mounted selectively.





Specifications



Display/Speaker

Display

2.4" TFT color LCD screen

Speaker

Voice prompt (language can be selected)

Language

English, French, Spanish, Arabic and more than 40 languages can be selected.

Technical Specifications Capacity

Fingerprint Capacity

50,000

Log Capacity

100,000

Verification/Identification

Verification speed(1:1)

≤ 0.5s

Identification speed(1:N)

≤1s

FRR

≤ 0.01%

FAR

≤ 0.0001%

Power Supply

110/220VAC~12VDC (3A is optional)

Communication Method

TCP/IP, RS232/485, USB host, Wiegand in/out

Environment

Operation Temperature

0℃~ 45℃

Operation Humidity

20% ~ 80%

Machine Size

185mm(L)×75mm(W)×40mm(H)

Attendance Status

Check in, check out

Function Support

Professional access control, built-in relay, 50 time zones, 5groups, 10combinations, multi-alarm, auto status, DST, scheduled bell, SMS, web server, work code, anti-pass back, 9 PIN user ID;

Customize Function

Multi-verification, ID reader, MIFARE reader, 3A power supply

Order Numbers

SC600

Multimedia ID card access control system

SC600+MF

Multimedia MIFARE card access control system



Biometric access control Rfid Time Attendance System with wired door bell 0

Biometric access control Rfid Time Attendance System with wired door bell 1

Granding Technology is a global Biometrics & RFID products and service provider by a top China-based team. We are specialized in the production of Fingerprint Time Attendance& Access Control, Fingerprint Lock,  fingerprint reader, Facial Recognition System, Proximity Card Time Attendance& Access Control ,and related accessories.
