Touch screen Biometrics access control system with fingerprint

Touch screen Biometrics access control system with fingerprint

standalone access control system

biometric door access system

Place of Origin:


Brand Name:




Model Number:



Request A Quote
Product Details
Product Name:
Fingerprint Access Control
Fingerprint Capacity:
Card Capacity(Optional):
Log Capacity:
Access Control::
Electric Lock, Door Sensor, Alarm, Exit Button, Door Bell
Power Supply:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time
2 working days after received your payment
Payment Terms
T/T in advance
Supply Ability
5,000pcs per week
Product Description

2.8 Inch Touch Screen Fingerprint Access Control And Time Attendance System




1. 2.8- inch touch screen, color display with graphical UI for easy operation.

2. Up to 24 user-defined schedules that can activate on a daily bell alert (Optional)

3. Voice prompt for acceptance and rejection of valid/ invalid fingers.

4. Compact and Lightweight, small size for 86*86mm socket installation.

5. TCP/IP or Rs485 communication for various networking environments.

6. Supports USB flash drive for offline data management.

7. Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch.

8. Up to 15 multi-verification methods to enhance security level.

9. Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.

10. Duress Alarm offers effective protect against duress by threats.

11. Tamper-proof switch and multiple alarm outputs

12. Multi-language customizable.





LCD Display

Access control Interface

2.8 inch resistive touch Screen

Electric lock, Door sensor, Alarm, Exit button, Door bell

Fingerprint Sensor: optical Sensor (500DPI)




Operation temperature:0℃~45℃

Card:5,000 (EM/MF) Records:80,000

Operation humidfity:20%~80%


Power Supply

TCP/IP, RS485, USB Host, Wiegand in/out


Algorithm Version

Aux. Input

Finger VX10.0

1ea for linkage function








The F04 is an IP based fingerprint terminal works both in network and standalone modes. In network mode, it can connect with Access3.5 software for access control and time attendance management.


Wiegand output makes F04 flexible to connect with any 3rd party controllers as a slave reader, additionally wiegand input allows two units of F04 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function could be used to maximize the security.


Auxiliary input interface allows F04 to connect with an external source, for instance a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.

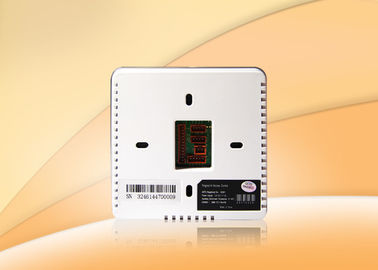

Touch screen Biometrics access control system with fingerprint 0

Touch screen Biometrics access control system with fingerprint 1Touch screen Biometrics access control system with fingerprint 2Touch screen Biometrics access control system with fingerprint 3Touch screen Biometrics access control system with fingerprint 4

Granding Technology is a global Biometrics & RFID products and service provider by a top China-based team. We are specialized in the production of Fingerprint Time Attendance& Access Control, Fingerprint Lock,  fingerprint reader, Facial Recognition System, Proximity Card Time Attendance& Access Control ,and related accessories.
