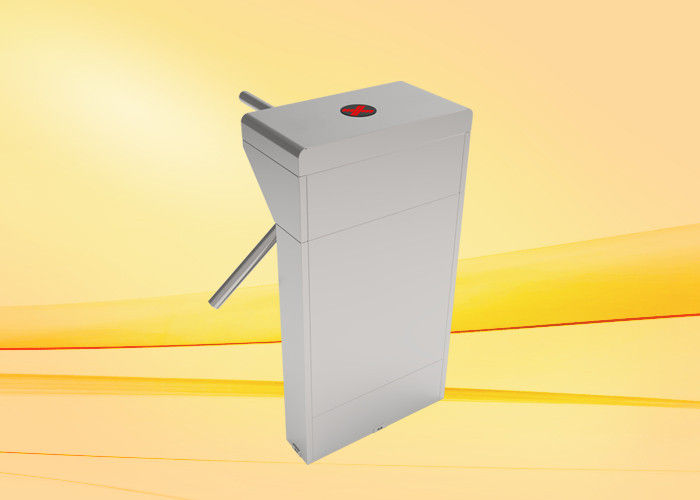

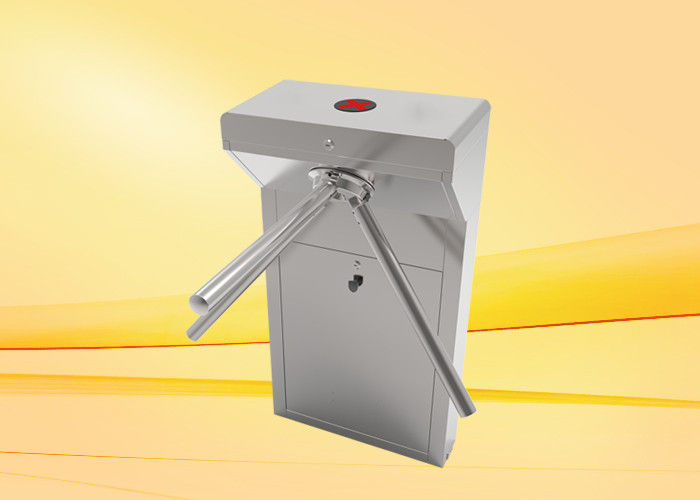

Indoor / Outdoor Security Tripod Turnstile , security turnstile gate for accee control

Basic Information
Place of Origin: China
Brand Name: Granding
Certification: CE/FCC
Model Number: TS-100
Minimum Order Quantity: 5pcs
Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time: 2 working days after received your payment
Payment Terms: T/T in advance
Supply Ability: 5,000pcs per week
Product Name: Tripod Turnstile IP Grade: IP54
Material: SUS304 Stainless Steel Material Direction: Both Direction
Verification Mode: Contain Driver Control Board Power Supply: 110-220V
High Light:

stainless steel turnstile

,

waist height turnstile

Vertical Tripod Turnstiles System With Power Supply , IP54 Ingress Protection



Features:



1. The TS100 tripod turnstiles are designed in compact structure.

2. The optimal cost effectiveness, low power consumption, and the high operating reliability, make this semi-automatic tripod turnstile quite popular home and abroad.

3. Coming with the default mode of locking, the vertical tripod turnstile will be actuated for the passage of one passenger once receiving authorization signal.

4. The access control turnstile is electronically controlled in both directions. It is possible for users to set up free passage at one direction.

5. In case of emergency, the arms of the tripod turnstile will be lowered for rapid evacuation.

6. The electromagnet can be used for locking when it is activated. When the machine is in idle status, the electromagnet is in standby mode.

7. Made of SUS304 stainless steel, this product can be designed with flexible reader installation plate, for the integration of the reader from the third party.





Specifications



Reader Type

Operating Temperature

Access control panel, no reader

-28°C-60°C

Power Supply

Working Environment

AC 220V/110V, 50/60Hz

Indoor/Outdoor (with shelter)

Rated Power

Operating Humidity

60W

5%-85%

IP Rating

Pictogram Indication

IP54

Yes

Housing Material

Control System

SUS304

Input controlled by dry contact

Emergency Button

Passenger Flow

Yes

25-48 passengers/minute

Package Data

Optional Function

Net weight: 34kg
Gross weight: 40kg
Product size: 52×98×28cm+arm length 50cm
Package size: 60×108×38cm

Customized material or structure, third-party access control, ticket system, passenger counter.
