Place of Origin: | China |
---|---|
Brand Name: | Granding |
Certification: | CE/FCC |
Model Number: | EM150D |
Minimum Order Quantity: | 5pcs |
Packaging Details: | Packed in carton ( wooden can be available if in special amount and requirement) |
Delivery Time: | 2 working days after received your payment |
Payment Terms: | T/T in advance |
Supply Ability: | 5,000pcs per week |
Product Name: | Magnetic Lock | Holding Force: | 2*150KG |
---|---|---|---|
Power Supply: | 12VDC | Type Of The Door: | All Type |
Open Model: | Swinging Door 90 | Signal: | NO/NC/COM |
Time Delay: | 0,5,10s | ||
High Light: | electric magnetic lock |

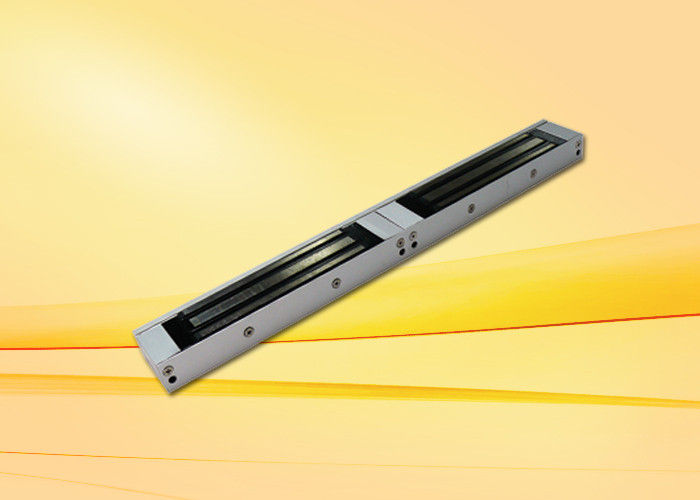

Double Door Electric Magnetic Lock EM150D Of Holding Force 300 KG
Features:
1. Power to lock;
2. Double-door application
3. Magnetic lock, no mechanical damage
4. power supply:12VDC
5. With LED, Signal output( NO, NC, com) or time delay
(0, 5, 10S)
6. Holding force: 2x150KG
7. starting current:640mA standby current:640mA
8. Application all type of door fire exit path, no frame
door can choose bracket
9. Swinging door 90
Specifications:
Lock type/fail safe |
Dimension |
Magnetic lock |
Lock Dimension: 336x38x23mm |
Power to lock |
Package size: 370X65X60mm |
Holding Force |
Opening mode |
2*150KG |
Swinging door 90 degree |
Power supply |
Gross Weight |
12VDC |
1.6kg |
Current consumption |
Environment |
Starting current:640mA |
Operation temperature: -20°C ~ 55°C |
standby current:640mA |
Operation humidity: 20% ~ 80% |
Bracket selection |
APPLICATION DOOR |
U type, Z type and L type (optional) |
All type of door fire exit path, no frame door can choose bracket |
Function Support |
Customize Function |
With LED, Signal output (NO, NC, COM) |
Time delay(0,5,10s) |
Order Bracket (optional)
EMJ150L |
L type bracket for EM150D |
EMJ150Z |
Z type bracket for EM150D |
