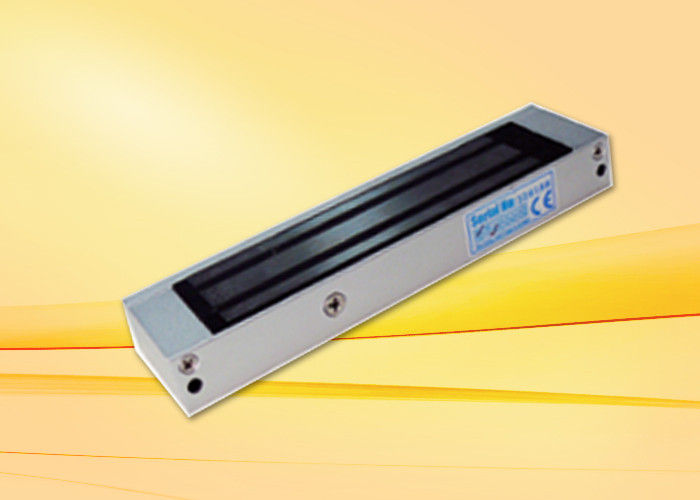

Application All Type Of Door Electric Magnetic Lock EM150A Of Holding Force 150 KG
Features:
1. Power to lock;
2. Magnetic lock, no mechanical damage
3. power supply: 12VDC
4. Holding force: 150KG
5. starting current: 380mA standby current:380mA
6. Swinging door 90
7. Application all type of door fire exit path, no frame
door can choose bracket
Specifications:
Lock type/fail safe |
Dimension |
Magnetic lock |
Lock Dimension: 168x38x23mm |
Power to lock |
Package size: 230X85X30mm |
Holding Force |
Opening mode |
150KG |
Swinging door 90 degree |
Power supply |
Gross Weight |
12VDC |
1kg |
Current consumption |
Environment |
Starting current:380mA |
Operation temperature: -20°C ~ 55°C |
standby current:380mA |
Operation humidity: 20% ~ 80% |
Bracket selection |
APPLICATION DOOR |
U type, Z type and L type (optional) |
All type of door fire exit path, no frame door can choose bracket |
Function Support |
Customize Function |
N/A |
Time delay |
Order Bracket (optional)
EMJ150L |
L type bracket for EM150A |
EMJ150Z |
Z type bracket for EM150A |
EMJ150U |
U type bracket for EM150A |
