Demo Case Of TCP / IP Access Control Panel And Two FR1200 , Built In Power

Basic Information
Place of Origin: China
Brand Name: Granding
Certification: CE/FCC
Model Number: InBio460 DEMO CASE
Minimum Order Quantity: 5pcs
Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time: 2 working days after received your payment
Payment Terms: T/T in advance
Supply Ability: 5,000pcs per week
Product Name: RFID Card Access Control Panel DEMO CASE Communication: RS485, TCP/IP
CPU: 32bit MIPS CPU Power Supply: DC 9.6V-14.4V
LED Indicator: YES Card Capacity: 50,000
Event Buffer: 200,000
High Light:

access control panel

,

single door access control

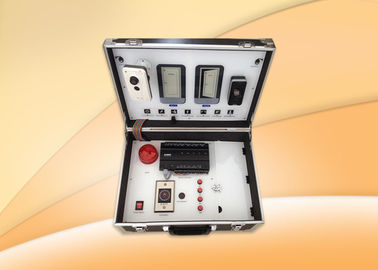

Demo Case Of RFID Card Access Control Board And Two FR1200 , Built In Power



Features:



1. DEMO CASE with FULL function of one inBIO460

door controller and two FR1200, built-in power

supply, motion detector and alarm etc.;

2. 4 exit buttion, 4 door sensor, 4 relay output, 4

switch input; 1 SD card slot





Specifications:



Model

inBIO460

CPU

32bit MIPS CPU

RAM

32M bits

Flash Memory

128M bits

Fingerprint Capacity

3000

Card Capacity

50,000

Event Buffer

200,000

Power/Current

DC 9.6V-14.4V, Rated Max 0.5A

Wiegand Reader Port

4nos. (26/34 bit Wiegand, 4/8bit Burs for PIN)

RS485 Reader Port

1no. Extended RS485 Port

Communication

RS485, TCP/IP

Baud Rate

38,400bps(Recommended)/9600bps,

19,200bps(selectable)

57,600bps(selectable)

Input Port

12nos.(Exit Button#1, Door Sensor#1; Exit Button#2,  Door Sensor#2; Exit Button#3, Door Sensor#3; Exit Button#4, Door Sensor#4,  4 Aux input)

Output port

4no.(4 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)



4no.(4 Aux FORM-C Relay Output, SPDT 2A@30VDC)

LED Indicator

LED indication for communication, power, status and valid card read

Operating Temperature

0°C ~ 55°C

Operating Humidity

10% to 80% relative humidity non-condensing

Dimension(H*W*D)mm

226mm*106mm*36mm(single board)



400mm*330mm*90.5mm(metal board)

Software

ZKAccess 3.5

Demo Case Of  TCP / IP Access Control Panel  And Two FR1200 , Built In Power 0Demo Case Of  TCP / IP Access Control Panel  And Two FR1200 , Built In Power 1Demo Case Of  TCP / IP Access Control Panel  And Two FR1200 , Built In Power 2
