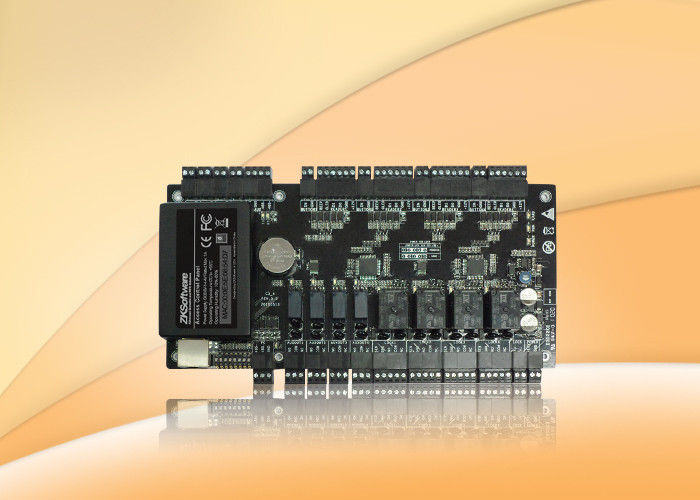

RFID Card Access Control Board , Four Door Single Way Controller , Built In Four Relay , Support Four Wiegand Reader
Features:
1. There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal. .Multiple hardware protection measure. Integration with Other Security Systems
2. C3-400 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
3. Supports different Wiegand reader
4. The controller support different wiegand format, and can Connect to different reader, including ID card reader, card reader and HID reader etc.
5. Input/ Output Ports to Control Doors
6. connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
7. Variety of Communication Function
8. Using either serial or TCP/IP communication, it provides reliable network system
9. B/S structure software
10. It is easy to manage the system by browser from client PC.
11. Normal open after first punch card can be setup
12. Real-time Monitoring of Door status
13. Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
14. Simple Access Control System Configuration
15. Interlock function
16. Link different doors with special logic that one door is Open, others should be closed.
17. Multi-card operation
18. This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
19. Anti-Passback
2. Duress Mode
21. SDK available
22. The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop
Specifications:
Model |
C3-400 |
CPU |
32bit MIPS CPU |
RAM |
32M bits |
Flash Memory |
256M bits |
User |
50,000 |
Event Buffer |
200,000 |
Power / Current |
DC 9.6V-14.4V, Rated Max.1A |
Reader Port |
4ea (26bit Wiegand, 8bit Burst for PIN) |
Communication |
RS485, TCP/IP |
Baud Rate |
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
Input Port |
12ea (Exit Button#1, Exit Button#2, Button#3, Button#4, Door Sensor#1, Door Sensor#2, Door Sensor#3, Door Sensor#4, Aux#1, Aux#2, Aux#3, Aux#4) |
Output Port
|
4ea (4 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) |
4ea (4 Aux FORM-C Relay Output, SPDT 2A@30VDC) |
|
LED Indicator |
Yes, LED indication for communication, power, status and punch card |
Operating Temperature |
0°to +55°C |
Operating Humidity |
10% to 80% relative humidity non-condensing |
Dimension (L*W)mm |
218(W)*106(H)(single board ) 345(W)*275(H)*70(D)(with power supply and metal box) |
Certification |
CE, FCC, RoHS |
