Place of Origin:
China
Brand Name:
Granding
Certification:
CE/FCC
Model Number:
FA210
CONTACT US
Temperature Detector Module with ZM200 Biometric Time Attendance System (TDM01)
Model: TDM01
Brand: GRANDING
Product Description:
TDM01 is an indoor USB Module used for Temperature Detection, applicable to both T&A and A&C devices of Granding. Features: USB Communication, Temperature Measurement Distance: 3cm to 5cm, Temperature Measurement Range: 32.0°C to 42.9°C or 89.6°F to 109.22°F Deviation: ±0.3°C or ±0.54°F

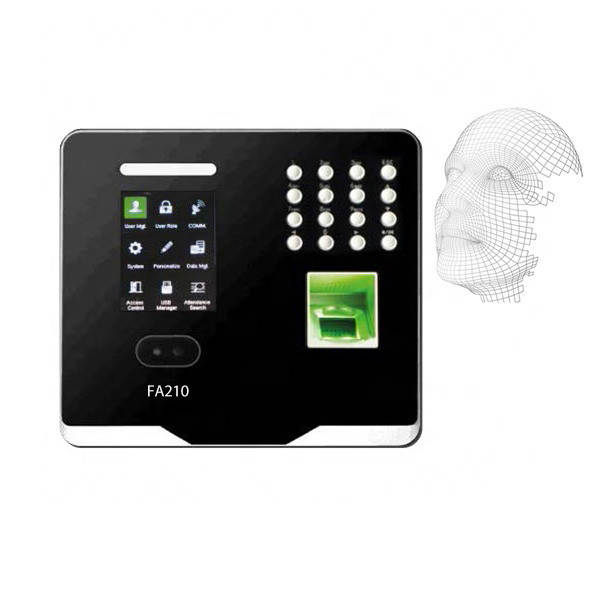

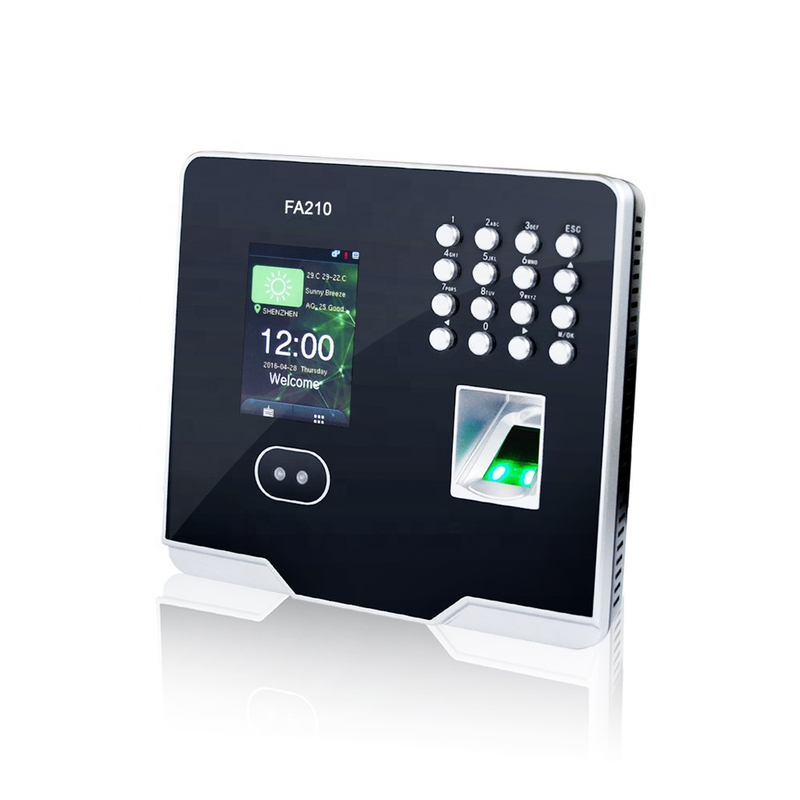

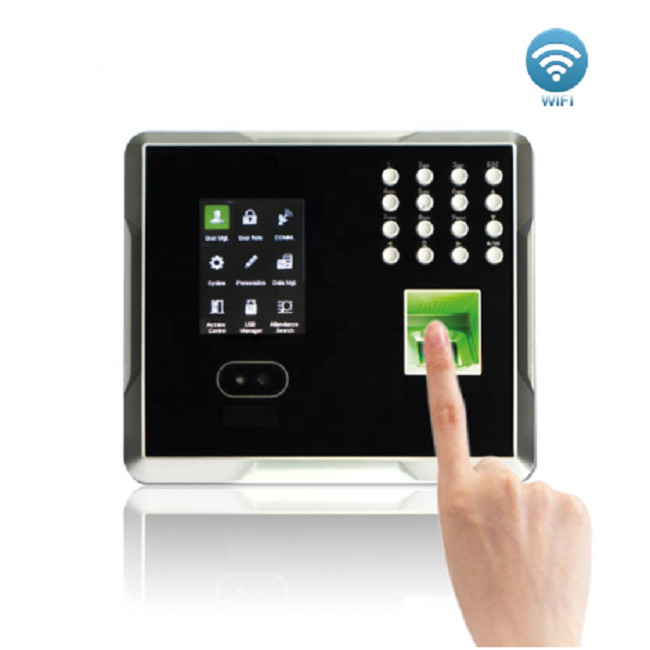

FA210 is a new version of a facial recognition system with access control and time attendance function; different from the old version, the new one with friendly UI, faster verification, and better performance, the most advantage is the malfunction rate is much lower than old ones.
1. USB Communication
2. Temperature Measurement Distance: 3cm to 5cm
3. Temperature Measurement Range: 32.0°C to 42.9°C or 89.6°F to 109.22°F
4. Deviation: ±0.3°C or ±0.54°F
| Display/Speaker | Language |
| LCD Display: 2.8" TFT Touch screen | Multi-Language, English, French, Spanish, Arabic, etc., for more than 40 languages can be selected |
| Speaker: Voice Prompt (language can be selected) | |
| Technical Specifications Capacity | Environment |
| Face capacity: 1,500; Fingerprint capacity: 2,000 | Operation temperature: 0℃ ~ 45℃ |
| Log capacity: 100,000 | Operation humidity: 20% ~ 80% |
| Verification/Identification | Verification/Identification |
| Verification speed (1:1): ≤0.5s | FRR: ≤0.01% |
| Identification speed (1:N): ≤1s | FAR: ≤0.0001% |
| Power Supply | Machine Size |
| Power: 110/220VAC ~ 12VDC 3A | 167.5(L)*148.8(W)*32.2(H)mm |
| Communication | Attendance Status |
| TCP/IP, RS232, USB Host & Optional WiFi | Check-in, Check out, Break in, Break out, OT in, OT out |
| Standard Function | Optional Function |
| ID card reader, ADMS, webserver, Scheduled bell, Work code, SMS, T9 input, DLST, Self-inquiry, Photo-ID, User role, Data encryption, User expiration rule | MF card reader, Wifi, printer function, external bell |
| Model | TDM01 |
| Basic Parameters | |
| Accuracy | 0.1°C (0.1°F) |
| Storage temperature | -20°C to 55°C |
| Operating ambient temperature | 15°C to 35°C (ideal temperature ≈ 25°C) |
| Relative humidity | 10% ~ 85% |
| Atmospheric pressure | 70kpa ~ 106kpa |
| Power DC | 5V |
| Dimensions | 88×88×54.63 (mm) |
| Weight | 180G |
| Measuring Range | |
| Human body model temperature measurement range | 32.0°C to 42.9°C |
| Measuring distance range | 3-5 cm |
| Automatic shut-down | About 15s |
| Measurement Accuracy | |
| 32°C to 35.9°C (93.2°F to 96.6°F) | ±0.3°C (0.5°F) |
| 36°C to 39°C (96.8°F to 102.2°F) | ±0.3°C (0.5°F) |
| 39°C to 43°C (102.2°F to 109.4°F) | ±0.3°C (0.5°F) |
| Service Life | |
| The service life of the product is 40,000 operation counts. | |
| Storage and Transportation Environment | |
| 1) Store in a well-ventilated room without corrosive gases. | |
| 2) Prevent drop or harsh jerk, vibration, rain, and snow splash during transportation. | |
