Place of Origin:
China
Brand Name:
Granding
Certification:
CE/FCC
Model Number:
FA3000
CONTACT US
Video

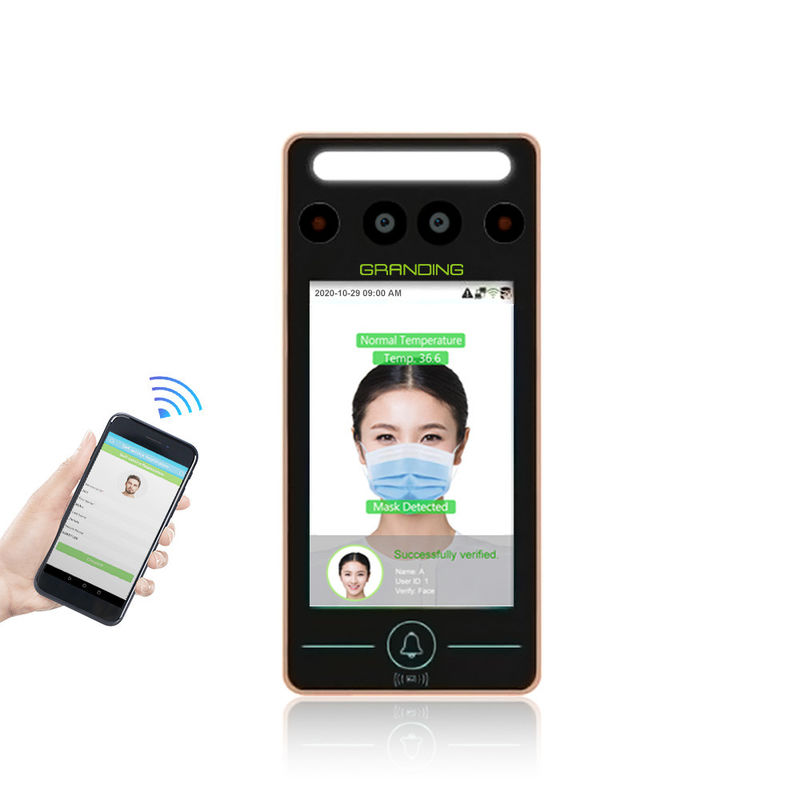

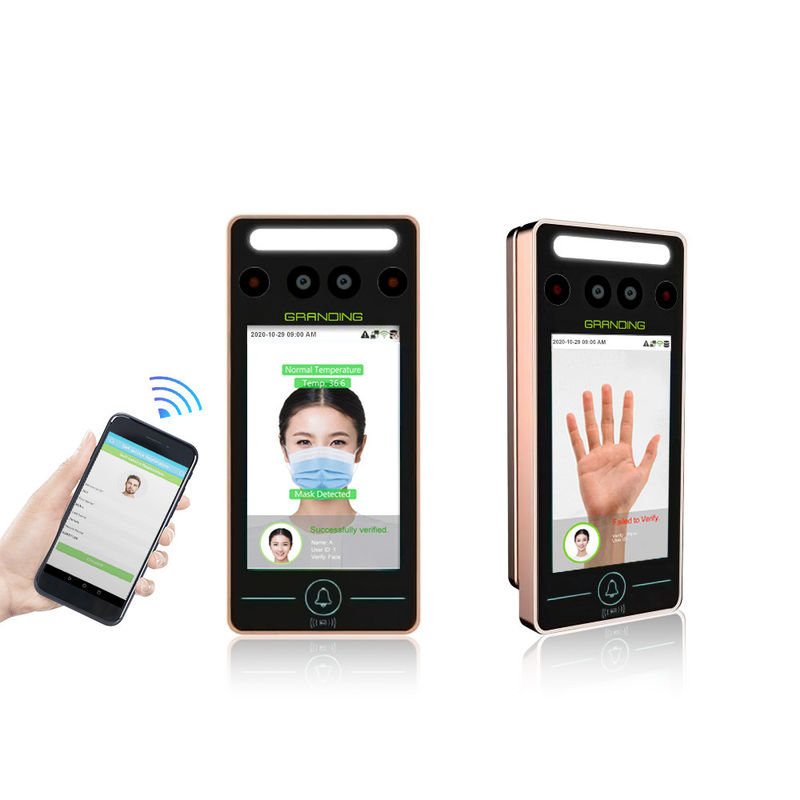

Video Intercom Doorbell Linux RFID/Palm/Face Access Control System with WIFI Support Mobile APP Operating
Introduction:
2 meters of recognition distance and extra wide angle recognition

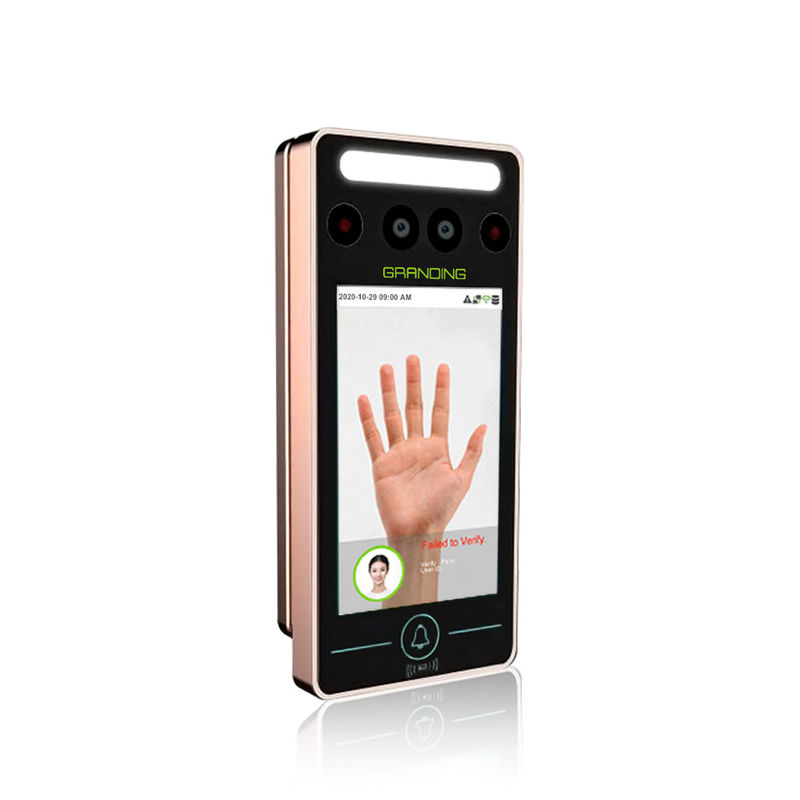

The recognition distance has been greatly extended to 2 meters, which significantly improves the maximum traffic rate. While most of the algorithms only support +/-15° of detectable face angle, FA3000 doubles the detection angle in terms of head rotation and tilt to +/- 30°. Touchless palm authentication method with a novel hand tracking technique allowing angle tolerance as wide as +/-60° in the roll axis and a recognition distance of 50cm.
Features:
1/ Enhanced Visible Light Facial Recognition
2/ Better hygiene with touchless biometric authentication, masked individual identification increases FAR
3/ Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
4/ Multiple verification methods: Face / Palm / Card / Password
5/ Capacity:1000 faces /1000 palms /1,000cards
5/ Communication mode: TCP/IP, RS232, RS485, Wiegand in/out and WIFI
6/ Built-in ID reader of 125Khz, Optional 13.56Mhz IC (MF) card
7/ Multiple Verification: Face I Palm I Card I Password
8/ Supplement light with adjustable brightness
9/ Professional web based management software
10/ Recognition distance: 0.3-2meters
Specifications
|
Model |
FA3000 |
|
Display |
4” touch screen |
|
Face Capacity |
1,000 |
|
Palm Capacity |
1,000 |
|
Card Capacity |
1,000 |
|
Transactions |
150,000 |
|
Operation System |
Linux |
|
Standard Functions |
ID Card, ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods, Palm Recognition, WiFi |
|
Hardware |
900MHz Dual Core CPU; 512MB RAM / 512MB Flash; 2MP Binocular Camera; Adjustable LED Supplement Lighting |
|
Communication |
TCP/IP, USB Host, WiFi, Wiegand Input/Output, RS485 |
|
Access Control Interface |
3rd-party Electric Lock, Door Sensor, Exit Button, Alarm Output, Auxiliary Input |
|
Optional Function |
13.56MHz IC Card, SRB Function, Cable Box, Video intercom, External bell |
|
Facial Recogntion Speed |
≤1s |
| Biometrics Algorithms | ZKFace V5.8 & ZKPalm V12.0 |
| Power Supply | 12V 3A |
| Working Humidity | 10% ~ 90% |
| Working Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Dimensions (W*H*D) | 72.94 * 157.94 * 23 (mm) |
| Net Weight | 260g |
| Gross Weight | 850g |
| Supported Software | ZKBioAccess IVS |
Granding Technology is a global Biometrics & RFID products and service provider by a top China-based team. We are specialized in the production of Fingerprint Time Attendance& Access Control, Fingerprint Lock, fingerprint reader, Facial Recognition System, Proximity Card Time Attendance& Access Control ,and related accessories.
