Biometric technology , your security , my profession
| Place of Origin: | China |
|---|---|
| Brand Name: | Granding |
| Certification: | CE/FCC |
| Model Number: | R09EP |
| Minimum Order Quantity: | 5pcs |
| Packaging Details: | Packed in carton ( wooden can be available if in special amount and requirement) |
| Delivery Time: | 2 working days after received your payment |
| Payment Terms: | T/T in advance |
| Supply Ability: | 5,000pcs per week |
| Product Name: | RFID Card Access Control | Communication: | Standalone, No Network Connection, Wiegand 26/34 Bit |
|---|---|---|---|
| Frequency: | EM Type: 125Khz ; | Speaker: | Buzzer |
| Waterproof Grade: | IP65 | Reading Distance: | 3cm-10cm |
| High Light: | proximity card access control,punch card attendance machine |
||

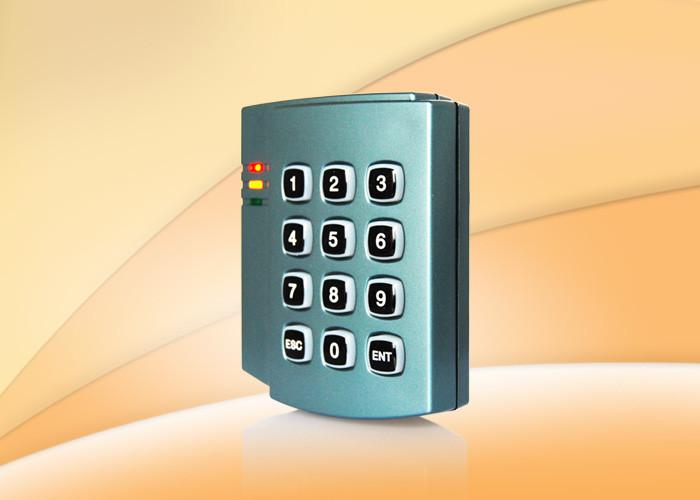

IP65 Proximity ID card reader with LED indicator reading range: 3cm~10cm
Specifications
| Model | R09EP |
| Type | Proximity card reader with keypad |
| Waterproof rank | IP54 |
| Color | Grey |
| Material | ABS |
| Frequency | EM type:125Khz |
| LED indicator | Red and Green |
| Speaker | Buzzer |
| Reading range | 75px-250px |
| Transmission distance | 80-100m |
| Power supply | DC 9-15V |
| Static current | 50-100mA |
| Working temperature | -20℃~60℃ |
| Operating Humidity | 10% to 90% |
| Output format | Wiegand 26/34 bit |
| Weight | 200g |
| Dimension | 106 x 87 x 32mm |
