3 Inch TFT Screen Palm Recognition Fingeprint Access Control System With Battery

Basic Information
Place of Origin: China
Brand Name: Granding
Certification: CE/FCC
Model Number: GT-810
Minimum Order Quantity: 5pcs
Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
Delivery Time: 2 working days after received your payment
Payment Terms: T/T in advance
Supply Ability: 5,000pcs per week
Product Name: Palm Recognition Fingerprint Time Attendance Communication: TCP/IP, USB Host/client, RS232/485
LCD Display: 3 Inch TFT Screen Fingerprint Capacity: 3,000
Palm Capacity: 600 Log Capacity: 100,000
Attendance Status: Check In/out, Break In/ Out, Overtime In/out Power Supply: 110/220V AC-12V/1.5A Built In Li-battery 3.7.V 4000mAh
High Light:

standalone access control system

,

biometric door access system

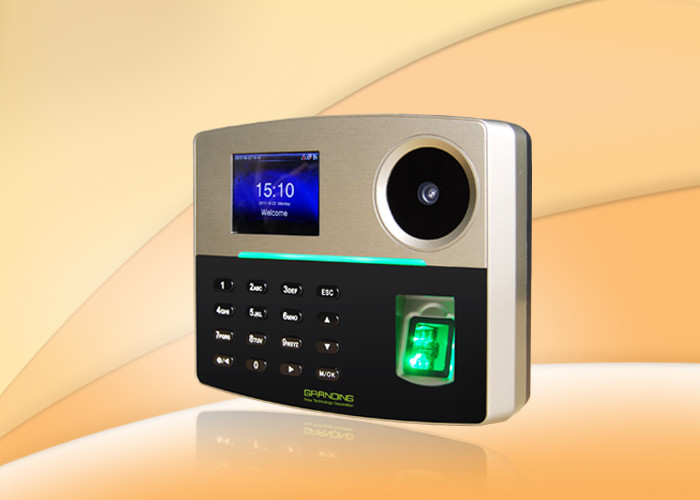

GT810 Granding Palm Recognition and Fingeprint Access Control System With Battery

The GT810 is the latest multi-verify biometric access control, combination with Palm and fingerprint, also can customize RFID card function. Support both network and standalone, wireless 3G/ WIFI, makes communication with PC easier. USB flash driver for offline data management. Higher-speed CPU, newest fingerprint and Palm Algorithm, friendly user-interface make operation much comfortable. Built-in battery provides approx 3-4 hours operation for power failure.



Features:



1. Muliti-verity mode: Palm, fingerprint, PIN, Card(option)
2. Define the shortcut keys easily
3. Data encrypted in the device
4. Rs232/485, TCP/IP, USB client/ host
5. User role management
6. User information expired date setting
7. Change main screen picture easily

8. Internal POE function for option

3 Inch TFT Screen Palm Recognition Fingeprint Access Control System With Battery 0

Specifications



Display/Speaker Language
LCD display: 3" TFT screen Multi Languages, such as English, French, Spanish, Arabic, etc.
Speaker: Voice prompt (language can be selected)
Capacity Environment
Fingerprint capacity: 3,000 Palm capacity: 600 Operation temperature: 0°C-45°C
Log capacity: 100,000 Operation humidity: 20%-80%
Verification/Identification Verification/Identification
Verification speed (1:1): ≤0.5s FRR: ≤0.01%
Identification speed (1:N): ≤1s FAR: ≤0.0001%
Power Supply Package
Power: 110/220V AC-5V/1A Built in Li-battery 3.7V 4000mAh machine size: 205*105*45MM
Communication Access control
TCP/IP, USB host/client, RS232/485 Built-in relay, 99time zone, 5 group, 10 door open combination
Standard Function Customized Function
User role management, fingerprint expired date setting, shortcut key setting, fingerprint image display, main screen picture alternation, work code, T9 input, scheduled bell, web server, auto status, DST, log query Print function, 9-PIN user ID, ID card/ HID card/ MIFARE card reader, WIFI, ADMS (Automatic data master server), 3G, external siren, POE

3 Inch TFT Screen Palm Recognition Fingeprint Access Control System With Battery 1
