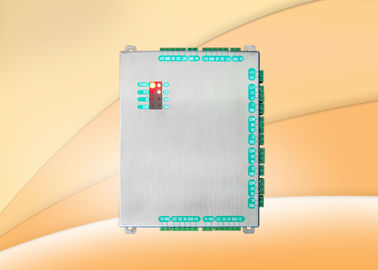

Access Smart Controller Four Doors Double Way Controller Built In Four Relays

Access Smart Controller Four Doors Double Way Controller Built In Four Relays

    • Access Smart Controller Four Doors Double Way Controller Built In Four Relays
    • Access Smart Controller Four Doors Double Way Controller Built In Four Relays
  • Access Smart Controller Four Doors Double Way Controller Built In Four Relays

    Product Details:

    Place of Origin: China
    Brand Name: Granding
    Certification: CE/FCC
    Model Number: C4-SMART

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
    Delivery Time: 2 working days after received your payment
    Payment Terms: T/T in advance
    Supply Ability: 5,000pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Access Control Panel With Power Box Communication: RS485, TCP/IP
    Card Capacity: 20,000 Event Buffer: 100,000
    Power Supply: DC 12V / 4-7A LED Indicator: YES

    Access Smart Controller , Four Doors Double Way Controller , Built-In Four Relays


    Introduction:

    C4-Smart is an access smart controller which designed with full metal housing in small size. The industrial spare parts and high quality materials can make it run well under bad environment in temperature from -35 ℃ to 70℃, and power consumption is lower. Once power is off, it will activate data protected function, all informationwill be saved safely and timely. This controller supports TCP/IP, installation is simple and convenient, user can manage all doors in one software. And we can also set anti-pass back function for the exact door or defined area freely!


    Features:

    1. Access control management
    2. Time attendance function
    3. Anti-pass back function
    4. User privilege management
    5. Card expired date setting
    6. Low power consumption
    7. Data protected with loss prevention
    8. Support database Access and SQL
    9. Support external reader
    10. Support TCP/IP
    11. Full metal housing with small size
    12. Easy installation
    Access Smart Controller Four Doors Double Way Controller Built In Four Relays
    Specifications:

    Model C4-Smart
    User 20,000
    Event 100,000
    Communication TCP/IP
    Reader Interface 4
    Max of Doors Controlled 4
    Input port 8 (4 Exit Buttons and 4 Door Sensors)
    Door Closing Delay 1-600 s
    Running indicator LED light
    Transmission distance 80-100 m
    Power supply DC 12V / 4-7A
    Static current 50~100mA
    Working temperature -35℃~70℃
    Operating Humidity 10% to 90%
    Wiegand Format Wiegand 26 -40 bit
    Weight 1.0 KG
    Dimension 167 X 133 X 31 mm
    Software Smart Access Control Management

    Access Smart Controller Four Doors Double Way Controller Built In Four Relays
