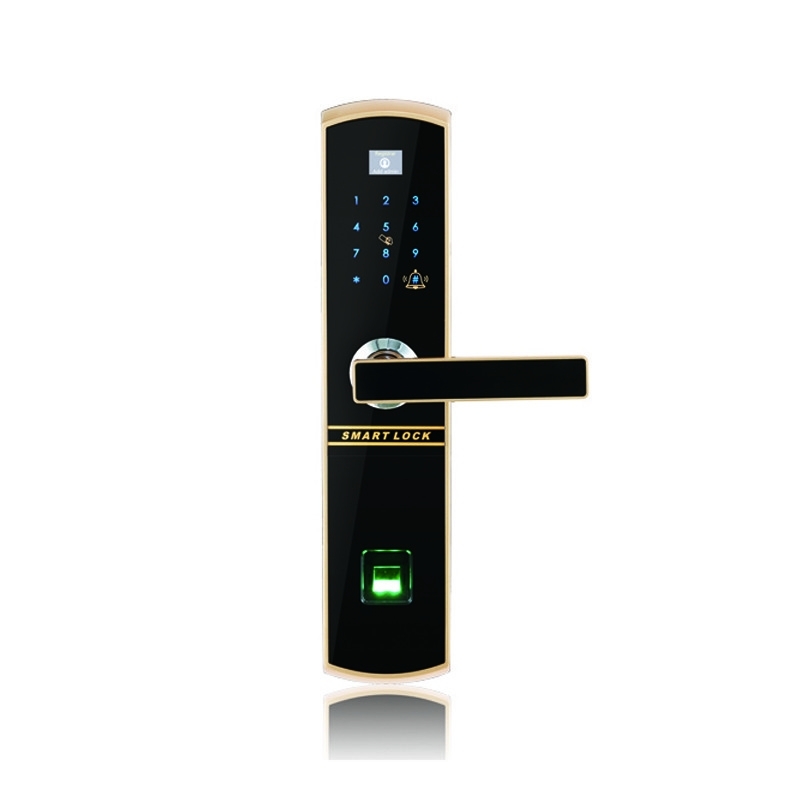

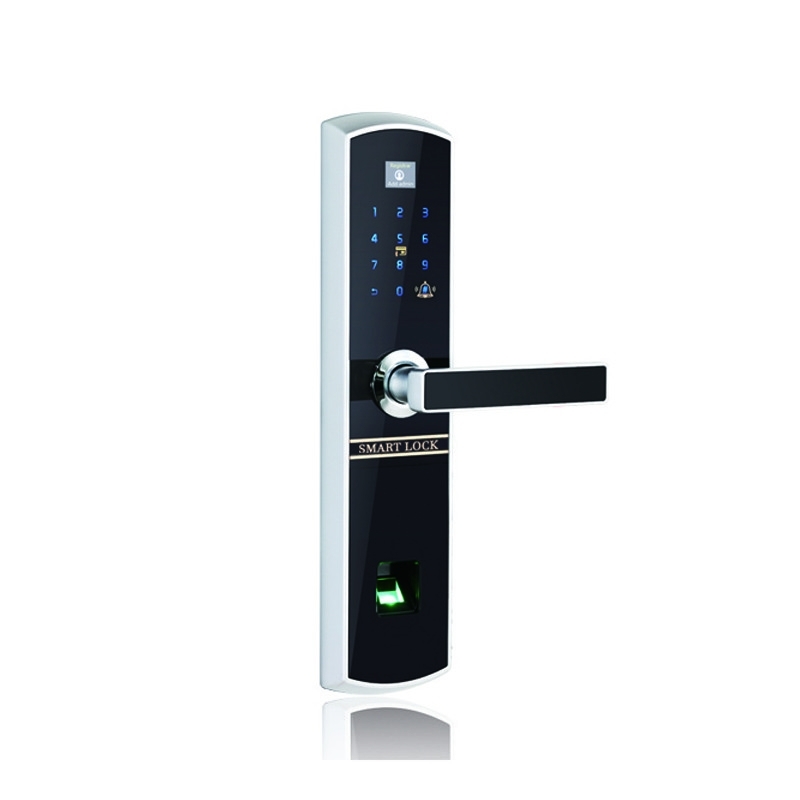

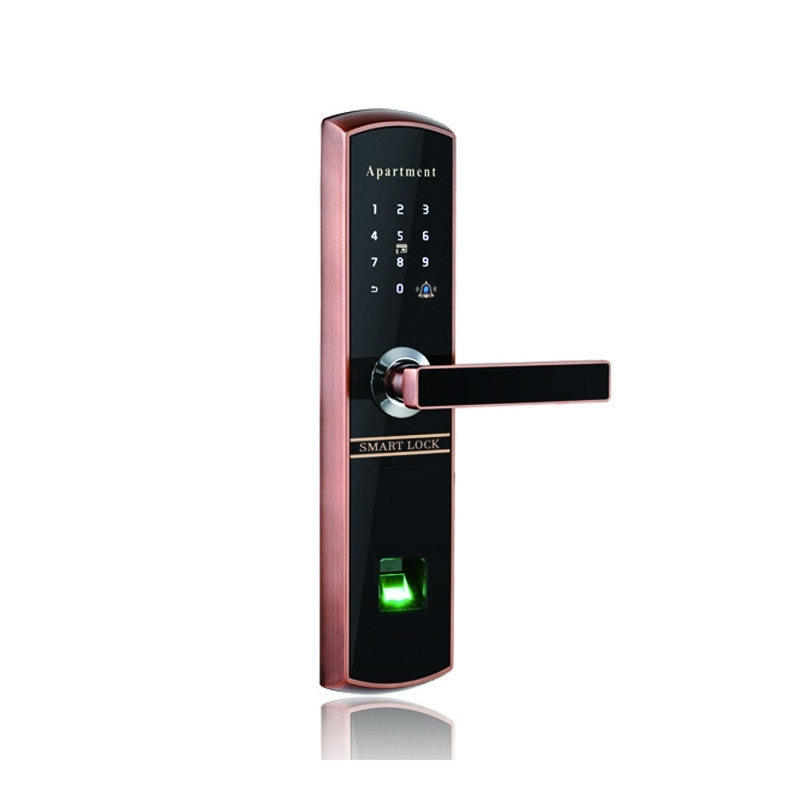

Low Voltage Alarm Safe Fingerprint Scanner Door Lock With Touch Keypad
UL-780 With elegant design, high-quality material, and better performance, it makes 3-in-one, it brings us a new safe lock. We use a live capacitive fingerprint sensor with anti-static current and accurate identification, which is more durable and stable than an optics sensor. The hidden finger-touch keypad is waterproof, when an operation is finished, the lock will turn off the light automatically, which helps us to save power at the most. All entries' events also can be queried on time.
1. Zinc Alloy material;
2. Match Way: 1:N; 1:1; password length: 4-12 digit;
3. OLED display, with 360DPI resolution;
4. Support offline view of locking records
5. Unlock mode: fingerprint, password, Mechanical key, M1
card (optional)
6. Finger-touch key buttons with power-saving function
7. Can display the battery charge lever, low battery voltage
alarming
8. Power Supply:4AA alkaline batteries
9. Lock color selectable: Silver, Golden, Bronze
10. Handle direction selectable: RIGHT, LEFT
|
Material |
Speaker &Display |
|
Zinc Alloy |
LCD with voice prompt |
|
Unlock Mode |
|
|
Fingerprint, Password, Password+Fingerprint, mechanical Key,(optional remote unlocking, RFIC card unlocking) |
|
|
Fingerprint Sensor |
Keypad |
|
Capacitive Sensor |
Finger Touch |
|
Fingerprint Pixel |
Identification |
|
360DPI |
FAR<0.0001% FRR<0.1% |
|
Technical Specifications Capacity |
Environment |
|
Fingerprint capacity: 200 Templates |
Operation Humidity: 20%-80% |
|
Password capacity: 10 groups Transaction capacity:100events |
Working Temperature: -10℃-50℃ |
|
Speed |
Verification mode |
|
Enrolling<0.5S Verification<0.8S |
1:N |
|
Power Supply Voltage |
Power Alarming |
|
4.5V-DC6V |
<4.5V |
|
Power Supply |
Applicable Door Size |
|
4PCS 1.5V AA Alkaline Batteries |
40-150mm (Tickness) |
|
Power Lifetime |
Lock size |
|
6-12 Months |
340*75*29mm (L*W*T) |
|
Current Consumption |
Weight |
|
Peak current<200mA Quiescent Current<40mA |
5.45KG |
