Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function

Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function

    • Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function
    • Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function
    • Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function
    • Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function
  • Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function

    Product Details:

    Place of Origin: China
    Brand Name: Granding
    Certification: CE/FCC
    Model Number: F04

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Packaging Details: Packed in carton ( wooden can be available if in special amount and requirement)
    Delivery Time: 2 working days after received your payment
    Payment Terms: T/T in advance
    Supply Ability: 5,000pcs per week
    Contact Now
    Detailed Product Description
    Product Name: Fingerprint Access Control Fingerprint Capacity: 1500
    Card Capacity(Optional): 5,000(EM/MF) Log Capacity: 80,000
    Access Control:: Electric Lock, Door Sensor, Alarm, Exit Button, Door Bell Power Supply: DC12V/3A(optional)
    High Light:

    standalone access control system

    ,

    biometric access control devices

    2.8 Inch Touch Screen Fingerprint Access Control And Time Attendance System



    Features:



    1. 2.8- inch touch screen, color display with graphical UI for easy operation.

    2. Up to 24 user-defined schedules that can activate on a daily bell alert (Optional)

    3. Voice prompt for acceptance and rejection of valid/ invalid fingers.

    4. Compact and Lightweight, small size for 86*86mm socket installation.

    5. TCP/IP or Rs485 communication for various networking environments.

    6. Supports USB flash drive for offline data management.

    7. Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch.

    8. Up to 15 multi-verification methods to enhance security level.

    9. Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.

    10. Duress Alarm offers effective protect against duress by threats.

    11. Tamper-proof switch and multiple alarm outputs

    12. Multi-language customizable.





    Specifications



    LCD Display

    Access control Interface

    2.8 inch resistive touch Screen

    Electric lock, Door sensor, Alarm, Exit button, Door bell

    Fingerprint Sensor: optical Sensor (500DPI)

    Capacity

    Environment

    Fingerprint:1,500

    Operation temperature:0℃~45℃

    Card:5,000 (EM/MF) Records:80,000

    Operation humidfity:20%~80%

    Communication

    Power Supply

    TCP/IP, RS485, USB Host, Wiegand in/out

    DC12V/3A(optional)

    Algorithm Version

    Aux. Input

    Finger VX10.0

    1ea for linkage function

    Dimension(W*H*L)



    105*105*34mm





    Introduction

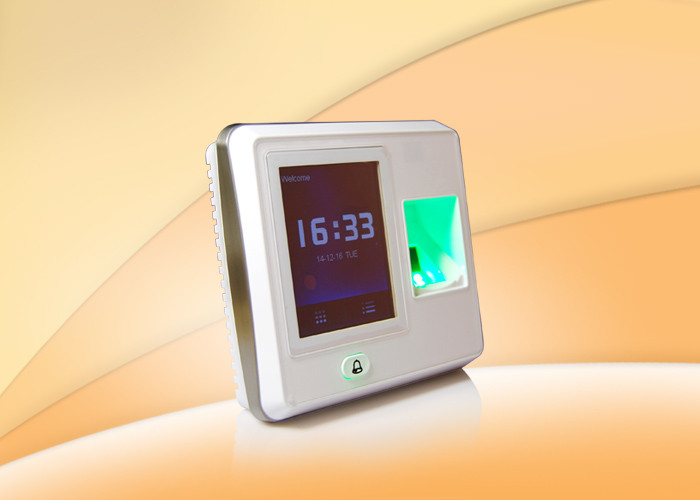

    The F04 is an IP based fingerprint terminal works both in network and standalone modes. In network mode, it can connect with Access3.5 software for access control and time attendance management.



    Wiegand output makes F04 flexible to connect with any 3rd party controllers as a slave reader, additionally wiegand input allows two units of F04 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function could be used to maximize the security.



    Auxiliary input interface allows F04 to connect with an external source, for instance a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.

    Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function

    Touch Screen Fingerprint Access Control System Time Attendance System With Wiegand FunctionTouch Screen Fingerprint Access Control System Time Attendance System With Wiegand FunctionTouch Screen Fingerprint Access Control System Time Attendance System With Wiegand FunctionTouch Screen Fingerprint Access Control System Time Attendance System With Wiegand Function

    Granding Technology is a global Biometrics & RFID products and service provider by a top China-based team. We are specialized in the production of Fingerprint Time Attendance& Access Control, Fingerprint Lock,  fingerprint reader, Facial Recognition System, Proximity Card Time Attendance& Access Control ,and related accessories.
